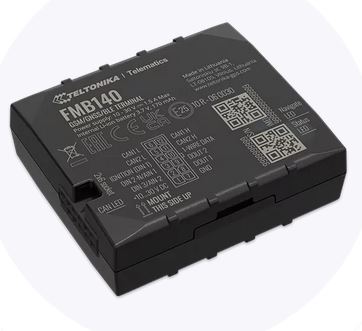

FMB140 to ZAAWANSOWANY lokalizator GSM / GNSS / Bluetooth ze zintegrowanym procesorem danych CAN. Jest to kompaktowe rozwiązanie 2 w 1: lokalizator GPS i adapter CAN w środku! Urządzenie umożliwia odczyt danych CAN z szerokiej gamy różnych pojazdów
MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature -0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 2
Analog Inputs 2
CAN interfaces 2
1-Wire 1 (1-Wire data)
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 3 status LED lights
SIM Micro-SIM + eSIM
Memory 128MB internal flash memory
FEATURES
CAN Data Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
