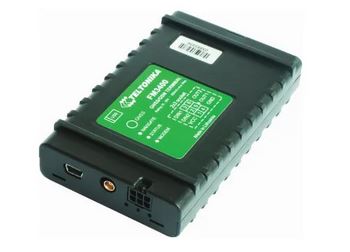

FM3400 to lekki terminal z łącznością GPS i GSM, który jest w stanie uzyskać współrzędne urządzenia i inne dane oraz przesyłać je przez sieć GSM. Zaimplementowana funkcja wykrywania zagłuszania pozwala użytkownikowi zobaczyć, jak sygnał GSM jest zagłuszany i urządzenie może powiadomić o tym kierowcę. To urządzenie doskonale nadaje się do zastosowań, w których potrzebne jest ustalenie lokalizacji odległych obiektów. Dzięki temu możesz szybko i łatwo śledzić odległe obiekty.
TECHNICAL DETAILS:
GSM
- Quad-Band 900/1800 MHz, 850/1900 MHz
- GPRS class 10 (up to 85,6 kbps)
- SMS (text/data)
GPS
- NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84 protocol compatible
- 32 channel GPS receiver
- -162dBm sensitivity
Interface
- 2 digital inputs(for door opening monitoring, panic button or other digital sensors)
- Virtual (Data) inputs:
- Driven distance (Virtual Odometer)
- Vehicle speed monitoring
- 2 Digital Outputs
- Power supply +10V…+30V
- 3 Status LEDs
- USB Port
- Configuration and firmware upload
- External GSM antenna for higher sensitivity
- External GPS antenna for higher sensitivity
Features
- GPS and I/O data acquisition
- Real Time tracking
- Smart algorithm of data acquisition (time, distance and event based)
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending
- 5 geofence zones (rectangular or circle)
- Sleep mode (saving vehicle’s accumulators)
- FOTA (firmware updating via GPRS)
- Accelerometer
- Small and easy to mount case
- Internal NiMh backup rechargeable battery
- Operation modes:
- Over Speeding Detection
- Jamming detection
Additional features
- FM3400 has large internal Flash memory (16MB):
- Up to 100350 records or data from up to 120 days using standard configuration (min. period=10min, min. distance=1km and all I/O elements enabled) can be stored on internal flash memory.
- There is a possibility to disable data sending while in Roaming and to store data on internal flash memory. Stored data will be sent to server when FM3400 will register to home operator.
- FM3400 can be used without a GSM connection:
- Additional function – Offline data logging – allows to download acquired data from FM3400 to PC via USB and later to upload it to TAVL server. This functionality helps to avoid high GPRS bills caused by expensive roaming operators and keep acquired data save until it is downloaded to PC. FM3400 can be used without a GSM connection
