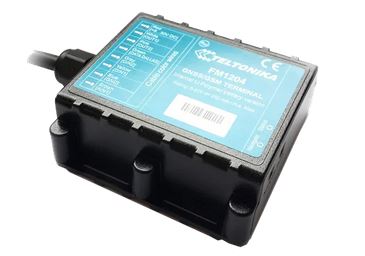

FM1204 to wodoodporny (Ip67) terminal urządzenia śledzącego w czasie rzeczywistym z łącznością GPS / GLONASS i GSM, który jest w stanie zbierać współrzędne urządzenia i inne przydatne dane i przesyłać je przez sieć GSM na serwer. Urządzenie to doskonale nadaje się do zastosowań, w których potrzebne jest pozyskiwanie lokalizacji odległych obiektów: zarządzanie flotą, transport wodny, motocykl, transport publiczny, wypożyczalnie samochodów, firmy logistyczne i tak dalej. W przypadku utraty połączenia FM1204 może przechowywać do 100 350 rekordów, a po nawiązaniu połączenia urządzenie będzie wysyłać zapisane dane przez GPRS. Dzięki temu nie stracisz swoich danych (współrzędnych, danych z czujników itp.).
TECHNICAL DETAILS:
GSM:
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 10 (up to 85,6 kbps);
- SMS (text/data)
GPS/GLONASS:
- NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
- 32 channel GPS/GLONASS receiver
- -161 dBm sensitivity
Interface:
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 1 Analog Input (10V or 30V range)
- 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
- 1-Wire® protocol
- 1Wire® temperature sensor
- 1Wire® iButton
- Motion sensor
- Power supply (+6…+30) VDC
- Hermetic enclose IP67
- Integrated Li-P o back-up battery
- Internal High Gain GSM antenna
- Internal High Gain GPS/GLONASS antenna
- Internal Flash memory – 16MB
- Dimensions: L(72,5mm) x W(73mm) x H(27,3mm)
- 2 Status LEDs
- USB Port
- Configuration and firmware upload (FOTA and via USB cable)
Features:
- Hermetic enclose IP67 allow use device in place where is contact with water
- Internal High Gain GSM antenna and Internal High Gain GPS/GLONASS antenna allow mount FM1204 much easier
- Real Time tracking
- Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending when GPRS not available
- 5 geofence zones (rectangular or circle)
- Auto Geofencing crested for car towing detection and car theft prevention
- Deep Sleep mode (less than 2 mA power consumption)
- FOTA (firmware updating via GPRS)
- Small and easy to mount case
- 3 operational modes (Home, Roaming, Unknown) based on operator
- Integrated scenarios:
- Over speeding to secure driver and prevent penalties
- Immobilizer function
- Authorized driving (1-Wire® iButton ID keys up to 50 iButton keys)use to prevent stealing or indicate drivers
- Trip start and end detection
- FM1204 can be used without a GSM connection
- Additional function – Offline data logging – allows to download acquired data from FM1204 to PC via cable and later to upload it to – TAVL server. This functionality helps to avoid high GPRS bills caused by expensive roaming operators and keep acquired data save until – it is downloaded to PC
- FM1204 supports a remote logs reading
- FM1204 supports remote diagnostic logs functionality using GPRS. Possible issues resolving becomes faster. Manufacturer can read logs remotely using SMS/GPRS to diagnose the FM1204 and timely respond to the fault.
