   /    LOKALIZATOR GPS, ZARZĄDZANIE FLOTĄ

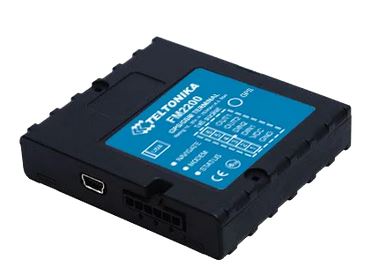

FFM2200 to lekki terminal z łącznością GPS i GSM, który może pobierać współrzędne urządzenia i inne dane oraz przesyłać je przez sieć GSM

TECHNICAL DETAILS

GSM

  • Dual-band 900/1800 MHz
  • GPRS class 10 (up to 85,6 kbps)
  • SMS (text/data)
  • GPS
  • NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84 protocol compatible
  • More then 49 channel GPS receiver
  • Sensitivity: not less then -160dBm
  • Accuracy: < 3 m CEP

INTERFACE

Inputs:

  • 2 digital inputs(for door opening monitoring, panic button or other digital sensors)
  • 2 pins for power supply can measure vehicle battery voltage (analog) and (in most cases) engine start (generated higher voltage on vehicle’s battery)
  • Virtual (Data) inputs:
  • driven distance (GPS odometer);
  • vehicle speed monitoring
  • 2 Digital Outputs
  • Power supply +10V…+30V
  • 3 Status LEDs
  • USB Port
  • Configuration and firmware upload
  • Internal GSM antenna
  • External GPS antenna

FEATURES

  • GPS and I/O data acquisition
  • Real Time tracking
  • External sensors connection capability
  • Smart algorithm of data acquisition (time, distance, angle and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (preferred GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS
  • Scheduled 24 coordinates SMS sending
  • 5 geofence zones (rectangular or circle)
  • Sleep mode (saving vehicle’s accumulators)
  • FOTA (firmware updating via GPRS)
  • Motion sensor
  • Very small and easy to mount case
  • Real time internal processes monitoring
  • Authorised numbers list for commanding

APPLICATIONS

  • Security
  • Track and trace
  • Road assistance
  • Toll collect
  • Insurance
