   /    LOKALIZATOR GPS, ZARZĄDZANIE FLOTĄ

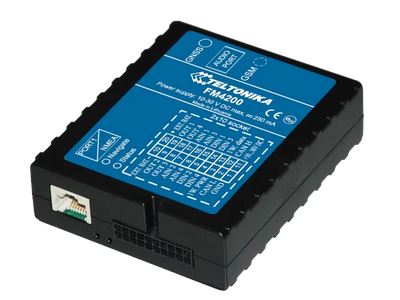

FM4200 to terminal z łącznością GPS i GSM, który jest w stanie pobrać współrzędne urządzenia i przesyłać je przez sieć GSM.

Monitor:

  • See when ignition is ON or OFF
  • Identify drivers with I-Button
  • Monitor fuel consumption
  • See when battery voltage is falling
  • Monitor temperature level in refrigerator
  • See when doors are open or closed
  • Acquire vehicle’s CAN data

MAIN FEATURES

  • Track your remote objects (trucks, cars, ships etc) quickly and easily
  • The device supports the following GSM bearers:
  • GPRS class 10 (up to 85,6 kbps)
  • SMS (text/data)
  • Dual-band GSM – 900 MHz / 1800 MHz
  • LOW energy consumption in deep sleep mode (less then 6 mA@12V)
  • Option of internal (or external) rechargeable battery with charge controller
  • FM4200 has:
    • 4 digital inputs
    • 4 digital outputs
    • 4 analogue inputs (2 ranges 10V and 30 V, 10 bit resolution)
    • This could be used for performing tasks on remote objects, such as monitoring fuel tank level, engine status, or controlling truck door etc.
  • FM4200 has 1-Wire® I/O protocol integrated for temperature measuring or key ID identification.
  • FM4200 has CAN interface for FMS interface of trucks, which enables data acquisition from trucks on-board computer.
  • FM4200 has RS232 port which could be used for external peripheral data acquire
  • Voice function
  • 2 LED indicators: “Status” and “Navigate”
  • The package includes antenna, Coloured I/O cables and data cables
  • Teltonika’s firmware for the device enables such functions as:
    • GPS and I/O, 1-Wire, CAN data acquisition
    • External sensors connection capability
  • Real Time tracking
  • Smart algorithm of data acquisition (time and distance based
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Flexible configuration of data sending in roaming networks (depending on GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS
  • Scheduled 24 coordinates SMS sending
  • Multi geofence zones (rectangular or circle)
  • Sleep mode and deep sleep mode (saving vehicle’s accumulators)
  • Acceleration detection (harsh breaking and accelerate measuring)
  • OTA (firmware updating via GPRS)
  • Real time internal processes monitoring
  • Authorized numbers list for commanding
