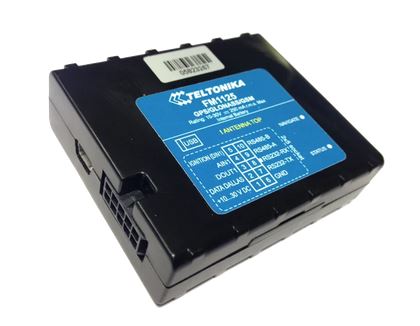

FM1125 to lekki terminal śledzący w czasie rzeczywistym z GPS / GLONASS, łącznością GSM i obsługą interfejsu danych RS232 / RS485, który jest w stanie zbierać współrzędne urządzenia i inne przydatne dane i przesyłać je przez sieć GSM do serwera.

TECHNICAL DETAILS:

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps)
  • SMS (text/data)

GPS/GLONASS:

  • NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
  • 32 channel GPS/GLONASS receiver
  • Not less than -160 dBm

Interface:

  • 1 Digital Input
  • 1 Analog Input (10V or 30V range)
  • 1 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1Wire® temperature sensor
  • 1Wire® iButton
  • RS232/RS485
  • Motion sensor
  • Power supply (+10…+30) V DC
  • Internal GSM antenna
  • Internal GPS/GLONASS antenna
  • Integrated back-up battery
  • Dimensions: L(65mm)xW(56,6mm)xH(18,9mm)
  • 2 Status LEDs
  • Configuration and firmware upload (FOTA and via cable )

Features:

  • Small and easy to mount case
  • Internal GSM antenna and Internal GPS/GLONASS antenna allow mount FM1125 much easier. There is also optional external GPS/GLONASS antenna
  • Real Time tracking
  • Smart data acquisition – based on time, distance, angle, ignition and I/O events allow to have precise online tracker
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections for GPRS traffic saving
  • Operating in roaming networks by preferred GSM providers list
  • Events from I/O elements detection and sending via GPRS or SMS
  • Scheduled 24 coordinates SMS sending when GPRS not available
  • 5 geofence zones (rectangular or circle)
  • Auto Geofencing for car towing detection and car theft prevention
  • Deep Sleep mode (less than 2 mA power consumption)
  • FOTA (firmware and configuration updating via GPRS)
  • 3 operational modes (Home, Roaming, Unknown) based on operator codes
  • Integrated scenarios:
  • Over speeding to secure driver and prevent penalties
  • Trip start and end detection
  • LV-CAN200 support
  • RS232/RS485 peripherial device support:
  • GARMIN FMI support
  • Digital LLS fuel sensors support
  • RFID protocol support
