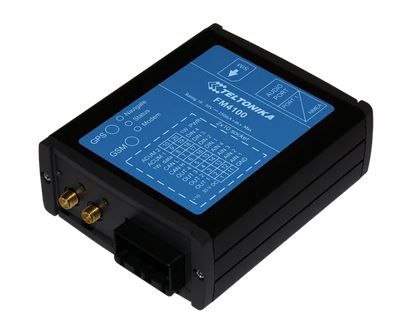

FM4100 to terminal z łącznością GPS i GSM, który jest w stanie pobrać współrzędne urządzenia i przesyłać je przez sieć GSM. To urządzenie doskonale nadaje się do zastosowań, w których potrzebne jest ustalenie lokalizacji odległych obiektów. Dzięki temu możesz szybko i łatwo śledzić odległe obiekty (ciężarówki, samochody, statki itp.).
Main features:
- Track your remote objects (trucks, cars, ships etc) quickly and easily.
- The device supports the following GSM bearers:
- GPRS class 10 (up to 85,6 kbps);
- SMS (text/data);
- Quad-band GSM – 900 MHz / 1800 MHz; 850 MHz / 1900 MHz.
- The aluminium case of the device is very robust and perfectly suitable for installation into harsh environment such as cars, trucks, boats or other moving objects.
- Option of internal (or external) rechargeable battery with charge controller.
- FM4100 has 4 digital inputs, 4 digital outputs and 4 analogue inputs, which could be used for performing tasks on remote objects, such as monitoring fuel tank level, engine status, or controlling truck door etc.
- FM4100 has 1-Wire® I/O protocol integrated for temperature measuring or key ID identification.
- FM4100 has optional CAN interface for FMS interface of trucks, which enables data acquisition from trucks on-board computer.
- FM4100 has RS232 port which could be used for external peripheral data acquire.
- Voice function.
- 3 LED indicators: “Modem”, “Status” and “Navigate”.
- The package includes antenna, I/O cables and data cables.
- Teltonika’s firmware for the device enables such functions as:
- GPS and I/O, 1-Wire, CAN data acquisition
- External sensors connection capability
- Real Time tracking
- Smart algorithm of data acquisition (time and distance based)
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections (GPRS traffic saving)
- Flexible configuration of data sending in roaming networks (depending on GSM providers list)
- Events on I/O detection and sending via GPRS or SMS.
- Scheduled 24 coordinates SMS sending
- Multi geofence zones (rectangular or circle)
- Sleep mode (saving vehicle’s accumulators)
- Acceleration detection (harsh breaking and accelerate measuring)
- OTA (firmware updating via GPRS)
- Real time internal processes monitoring
- Authorized numbers list for commanding
