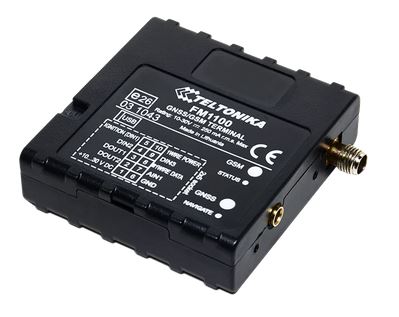

FM1100 to lekki terminal z łącznością GPS / GLONASS i GSM, który jest w stanie uzyskać współrzędne urządzenia i inne dane oraz przesyłać je przez sieć GSM.

Application:

  • Track and trace
  • Road assistance
  • International logistics
  • Personal car’s and van tracking
  • Fleet management

TECHNICAL DETAILS:

GSM

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps);
  • SMS (text/data)
  • GPS/GLONASS
  • NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
  • 32 channel GPS/GLONASS receiver
  • -161 dBm sensitivity

Interface

  • 1 Digital Input Reserved for Ignition Status Monitoring
  • 2 Digital Inputs
  • 1 Analog Input (10V or 30V range)
  • 2 Digital Open-collector Outputs (connecting external relays, LED, buzzers etc.)
  • 1-Wire® protocol
  • Power supply (+10…+30) V DC
  • 2 Status LEDs
  • USB Port
  • Configuration and firmware upload (FOTA and via USB cable)
  • External GSM antenna (SMA connector)
  • External GPS/GLONASS antenna (MCX connector)

Features

  • GPS/GLONASS and I/O data acquisition
  • Real Time tracking
  • Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (preferred GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS.
  • Scheduled 24 coordinates SMS sending
  • 5 geofence zones (rectangular or circle)
  • Deep Sleep mode (saving vehicle’s accumulator)
  • FOTA (firmware updating via GPRS)
  • Motion sensor
  • Small and easy to mount case
  • Roaming dependant operation (GPRS traffic saving in roaming zones)
  • Operation mode presets:
  • Advanced overspeeding detection
  • Driver identification (1-Wire® iButton ID key)
