LOKALIZATOR GPS, ZARZĄDZANIE FLOTĄ

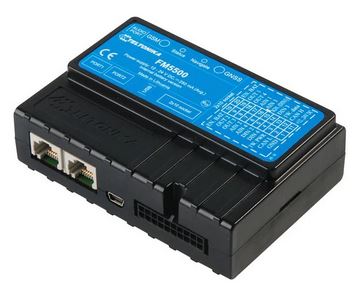

FM5500 to zaawansowany terminal z pozycjonowaniem GLONASS / GPS i łącznością GSM, który jest w stanie uzyskać współrzędne urządzenia i inne dane oraz przesyłać je przez sieć GSM.

TECHNICAL DETAILS:

GSM/GPRS:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps)
  • SMS (text/data)
  • GPS/GLONASS:
  • NMEA-0183 protocol
  • 32 channel receiver
  • High sensitivity, not less than -160 dBm

Interface:

  • 4 Digital Inputs for object status monitoring
  • 4 Analog Inputs (switchable 10 V or 30 V range, 12 bit resolution)
  • 4 Digital Open-collector Outputs (controlling external relays, LED, buzzers, etc.)
  • 1-Wire® interface protocol
  • CAN interface
  • Power supply (+10…+30) V DC
  • 2 Status LEDs
  • USB interface
  • 2x RS232 ports
  • Configuration and firmware update (OTA and via USB cable)
  • External GSM antenna
  • External GNSS antenna
  • Optional internal (or external) rechargeable battery with charge controller
  • Voice interface
  • RS485 interface
  • Integrated automotive power protection, compatible with ISO 7637-2 standard

Features:

  • 2 SIM Compatibility
  • Up to 45 000 records can be stored on flash memory
  • GPS/GLONASS coordinates and I/O data acquisition
  • Real Time tracking
  • Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (configurable GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS
  • Scheduled 24 coordinates SMS sending
  • Multi geofence zones (rectangle or circle)
  • Deep Sleep mode (saving vehicle‘s accumulator)
  • FOTA (firmware updating via GPRS)
  • Accelerometer
  • Small and easy to mount case
  • Roaming dependant operation (GPRS traffic saving in roaming zones)
  • Harsh driving detection (harsh braking, harsh acceleration and harsh cornering)
  • Operation mode presets
  • Over Speeding Detection
  • Driver behavior monitoring (acceleration/breaking/cornering notification)
  • Driver identification (1-Wire® iButton ID key)
  • GPRS commands *
  • External RS232 peripherial device support: *
  • GARMIN FMI support
  • 2x LLS support
  • RFID protocol support
    • – available from 01.xx.xx firmware

FM5500 versions:

  • GPS only modification
  • GPS/GLONASS modification
